Adjusting Print Positioning

Adjusting Card Positioning – X and Y Axis

This guide walks you through the process of adjusting card alignment for the IDP SMART-51 and other compatible models. Fine-tuning the X and Y axis ensures print content is properly centered and aligned on your card.

---

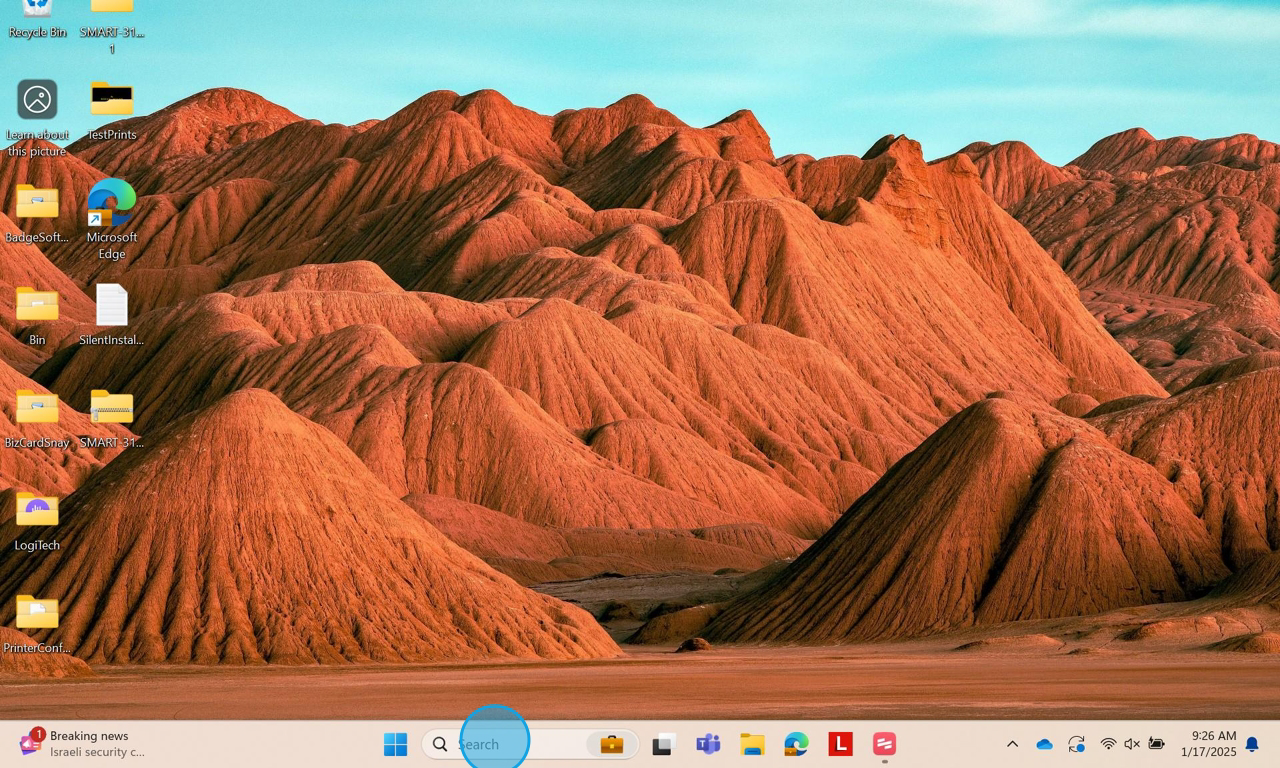

1. Click the Windows search bar and open Control Panel.

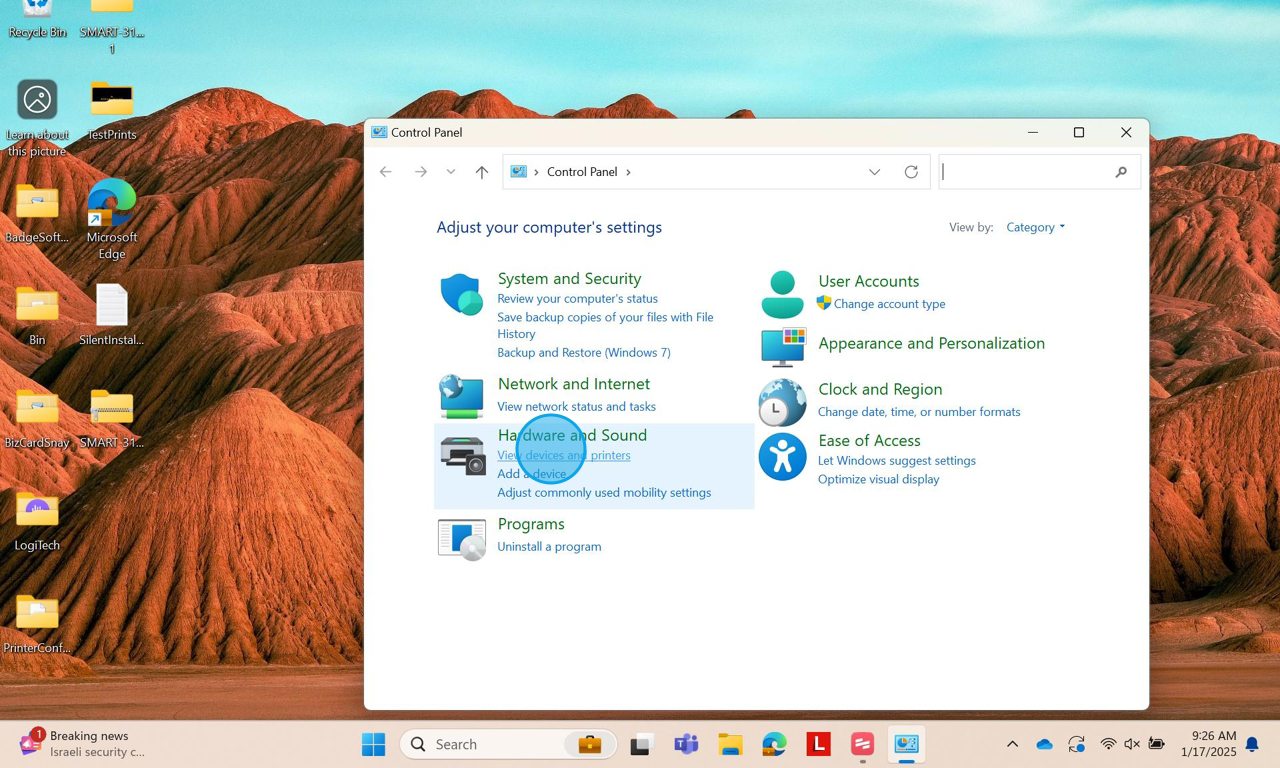

2. Click View devices and printers.

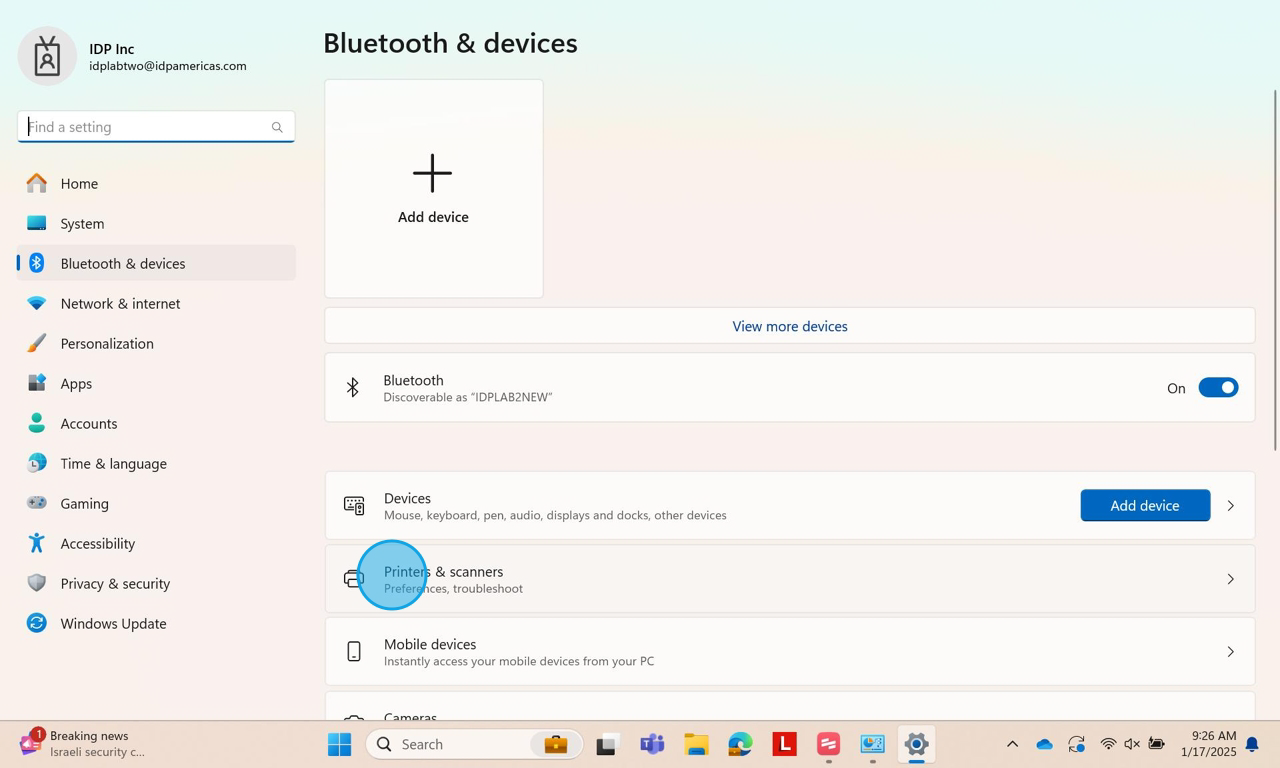

3. Click Printers & Scanners.

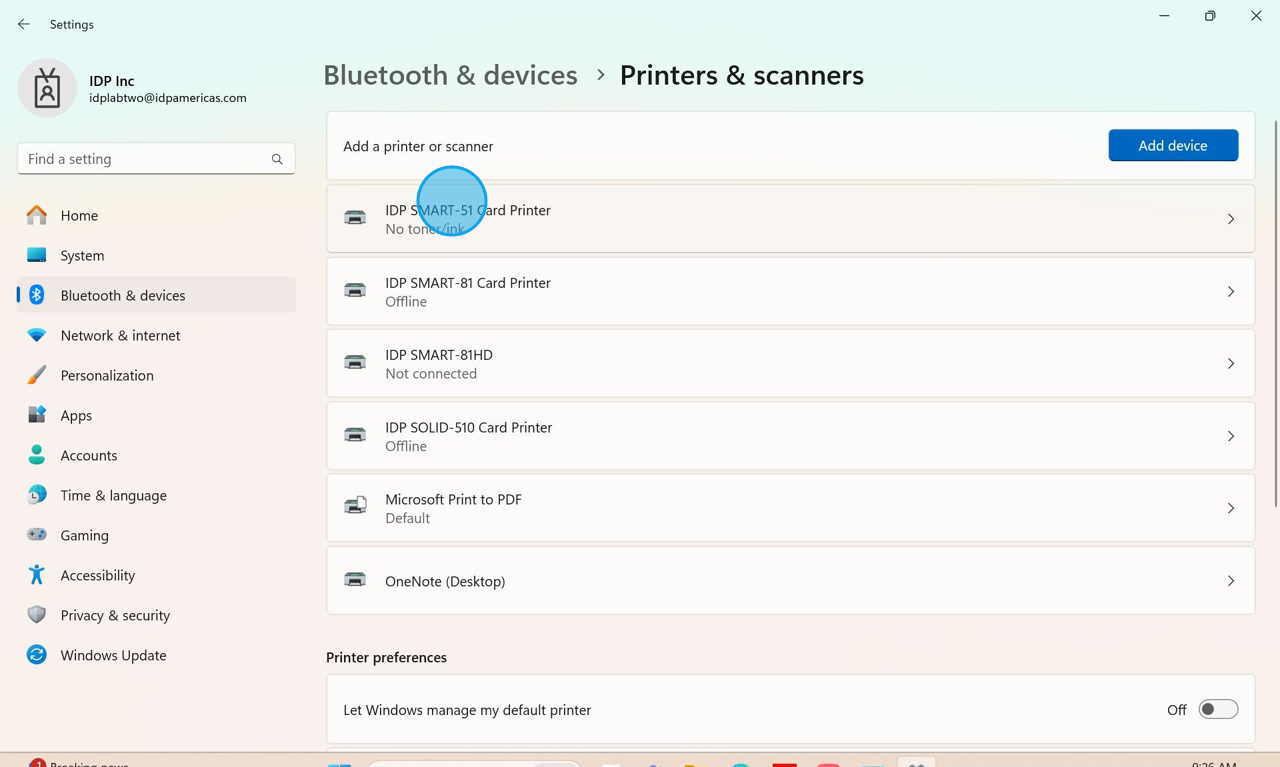

4. Select IDP SMART-51 Card Printer (or the printer being used).

5. Click Printer Properties.

6. Go to the Service tab.

7. Click Config Printer.

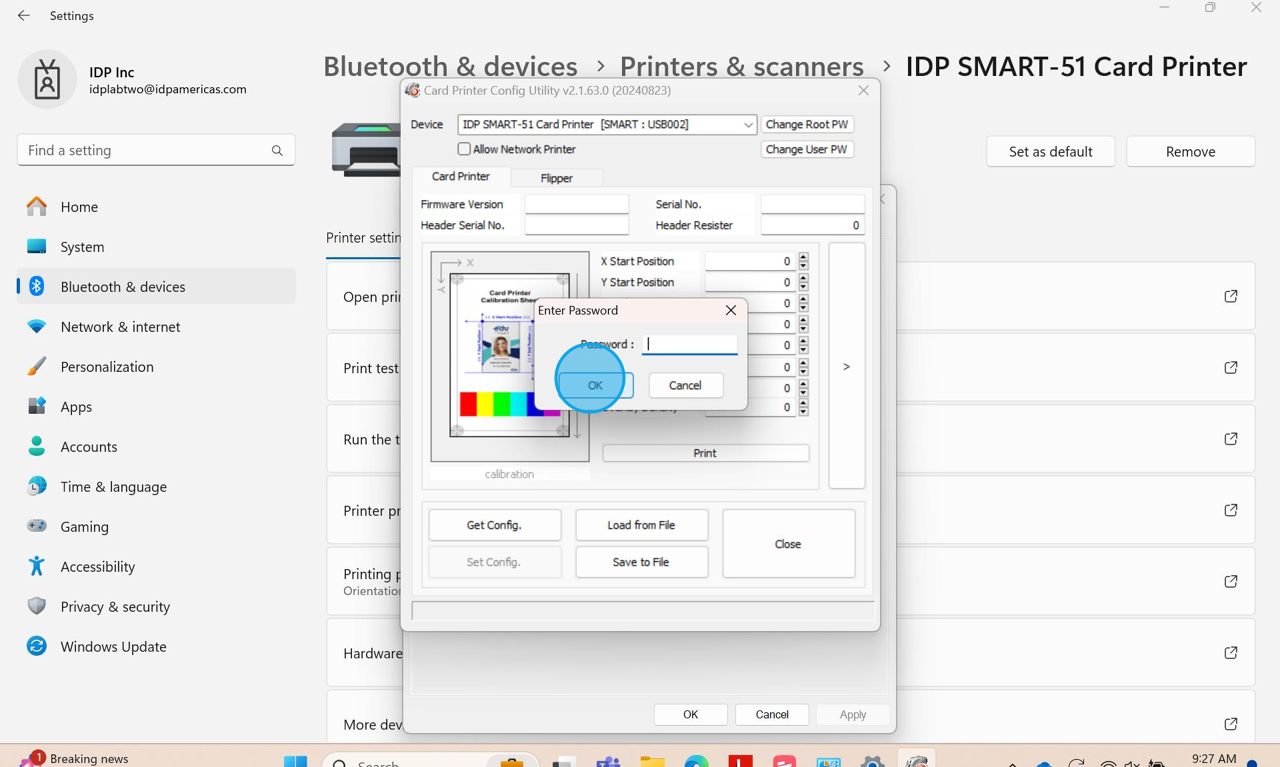

8. When prompted for a password, simply click OK without entering anything.

9. Use the Up/Down arrows for X Position to move the image left or right.

10. Use the Up/Down arrows for Y Position to move the image vertically.

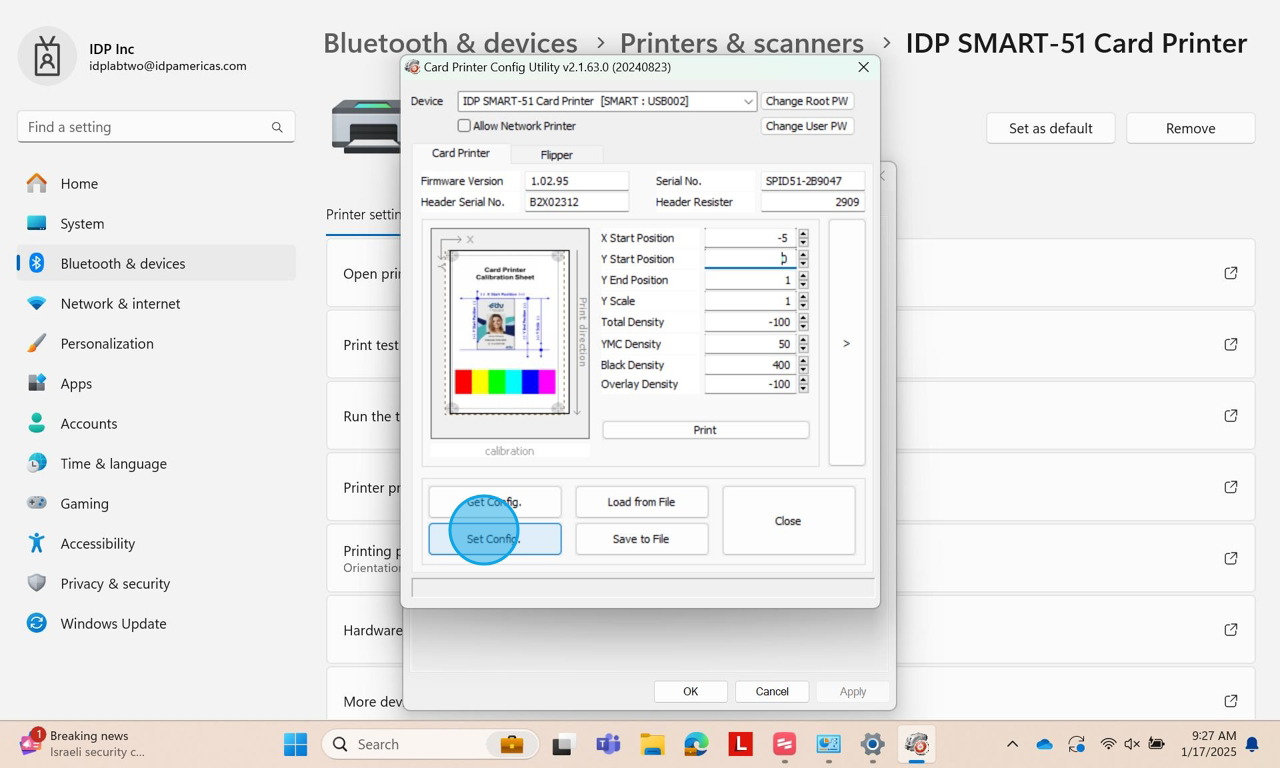

11. Click Set Config. to apply your settings. Wait for the green progress bar to complete before proceeding.

---
