Applying Printer Mask

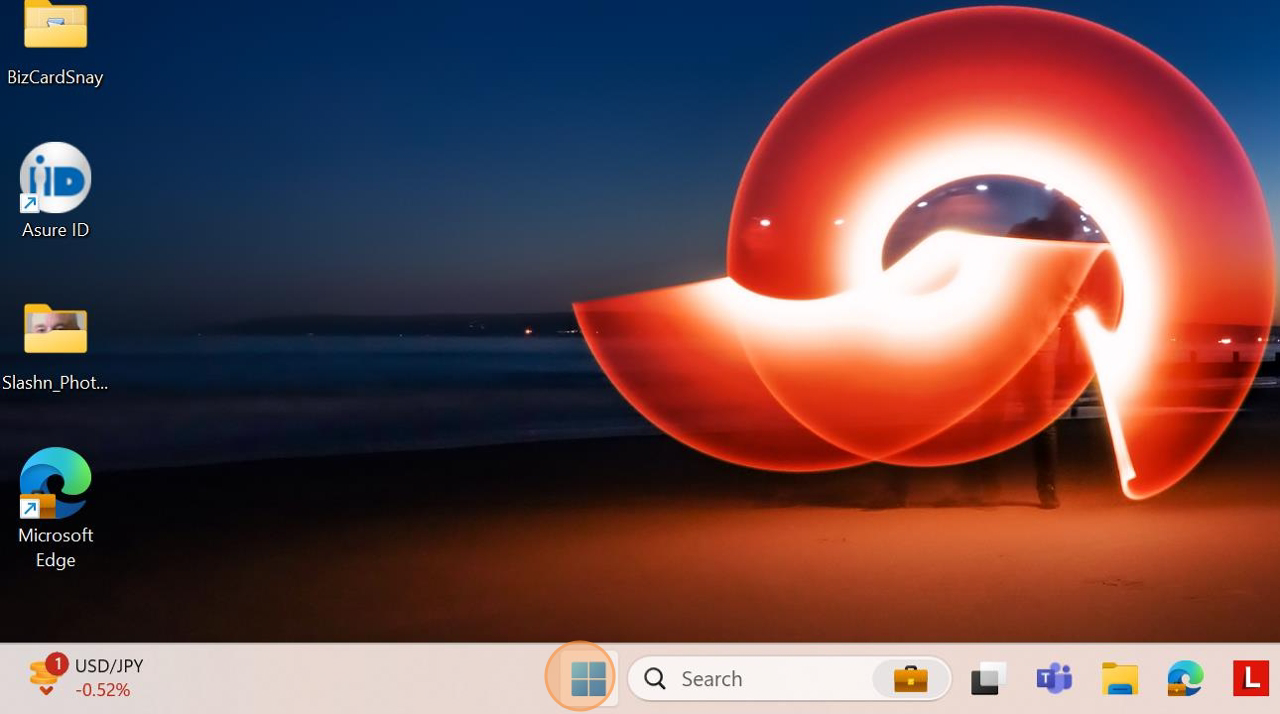

1: Right click Windows Start Button

2: Click "Settings"



3: Click "Bluetooth & Devices"

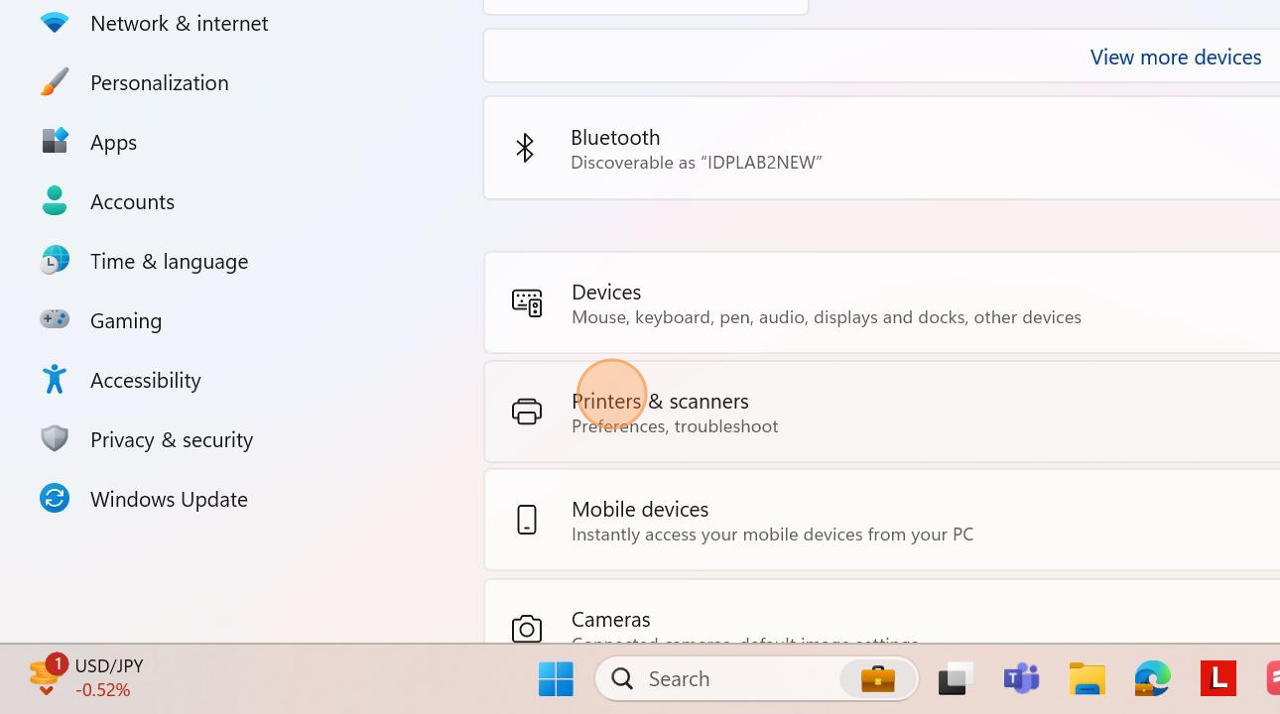

4: Click "Printers & scanners"



5: Click "IDP SMART-51 Card Printer" or Printing Being Utilized.



6: Click "Printing preferences" for older Operating System click manage first, preferences will then
show

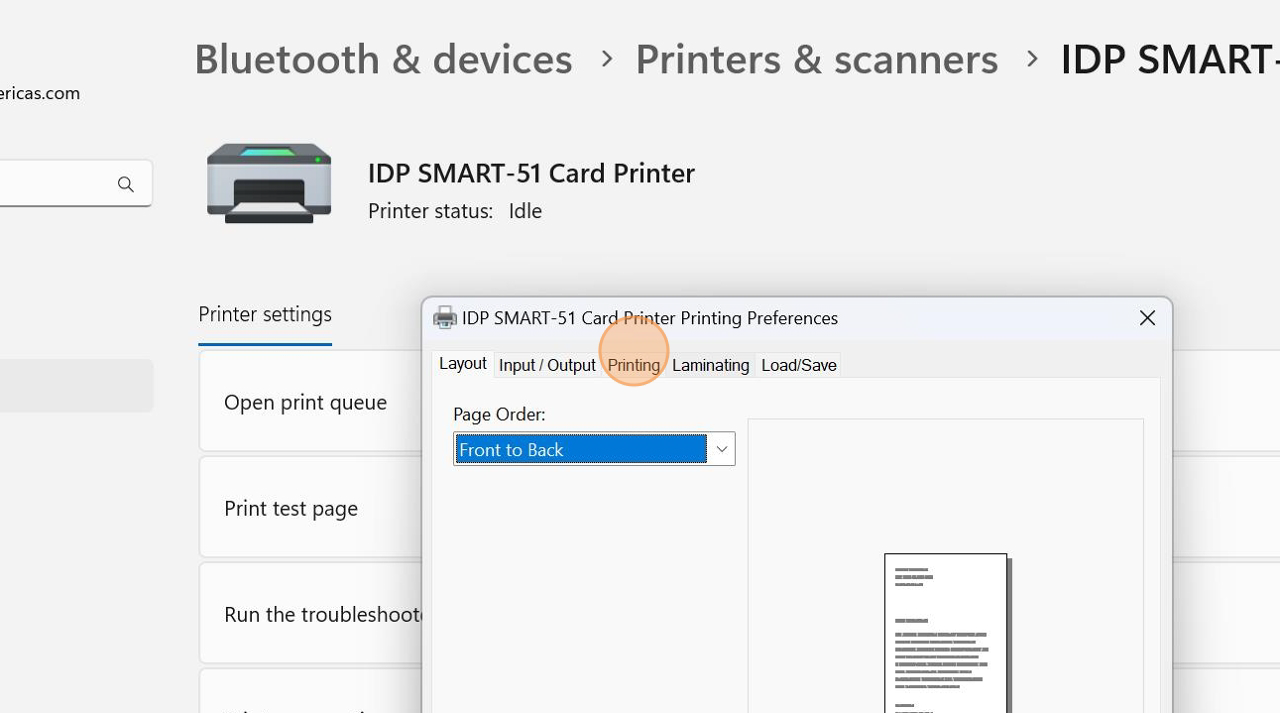

7: Click "Printing" Tab

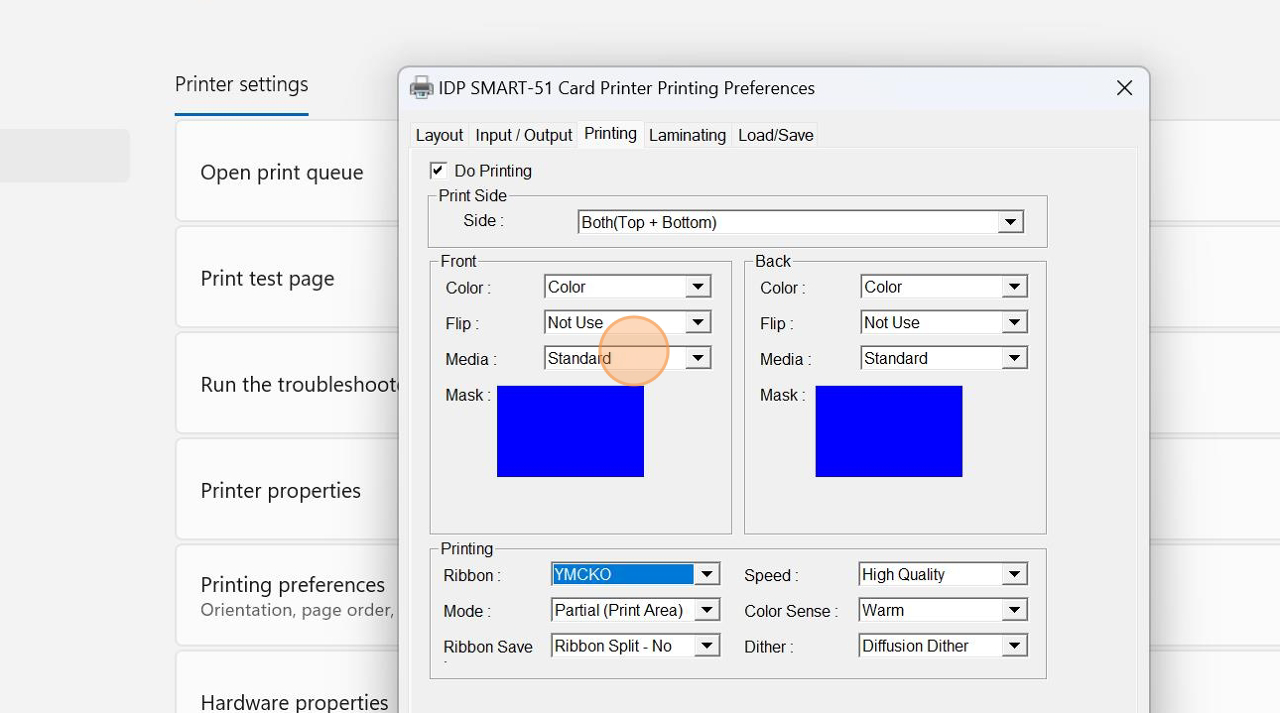

8: Click "Media :" dropdown to select Overlay Mask being used.



9: Click on "Standard" or select the mask/overlay currently in use. For Magstripe and Smartcard, predefined areas are configured to prevent printing in specified zones. If you need a custom output, you can upload and apply your own bitmap file to achieve the desired results.

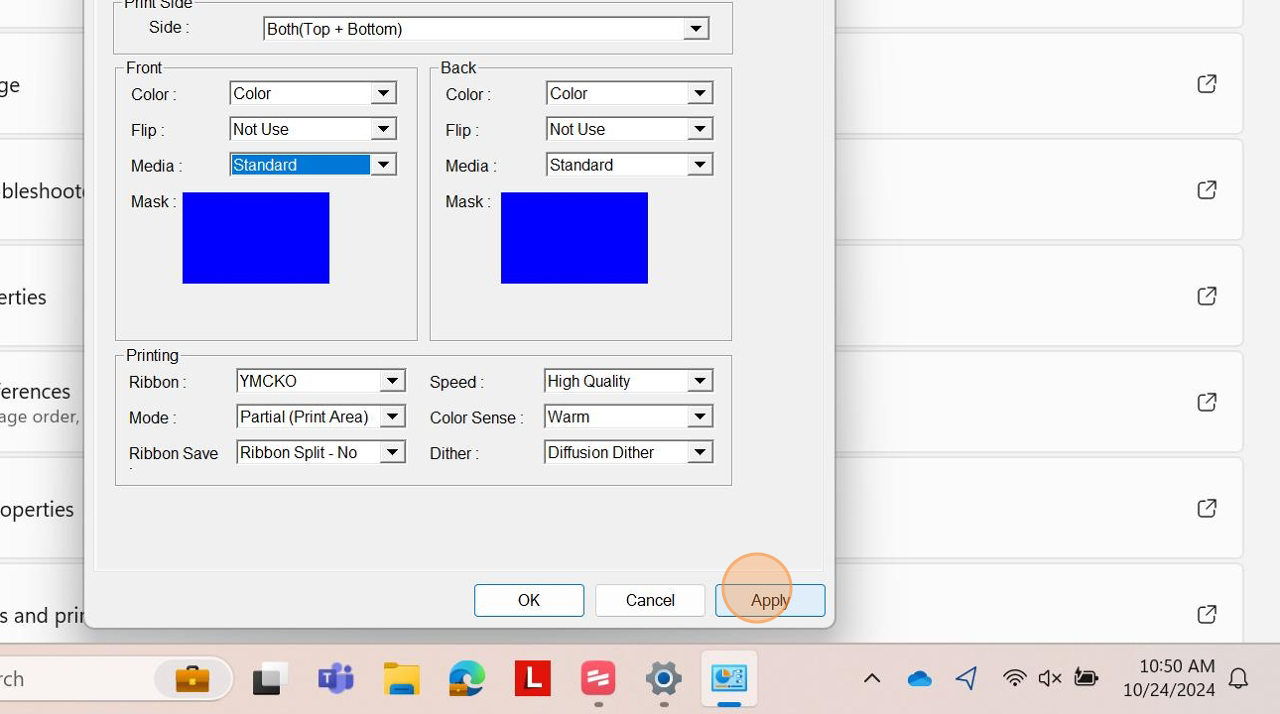

10: Click "Apply"

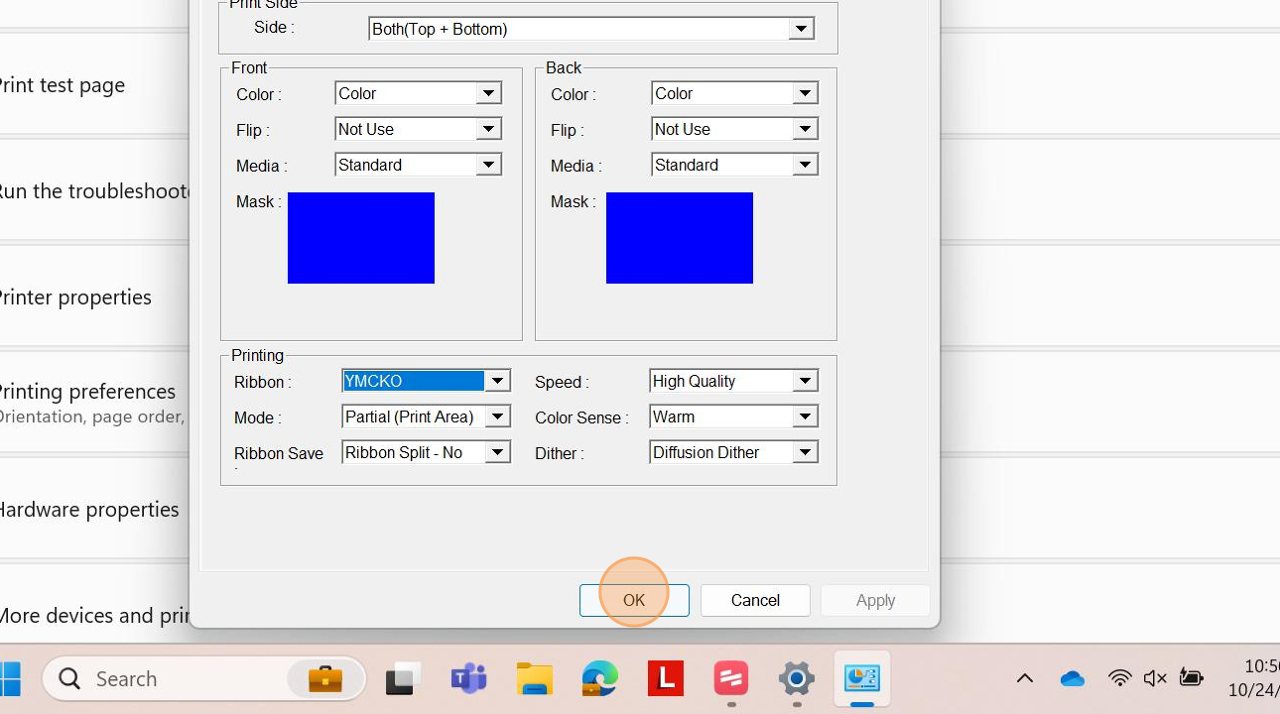

11: Click "OK" to close and save
